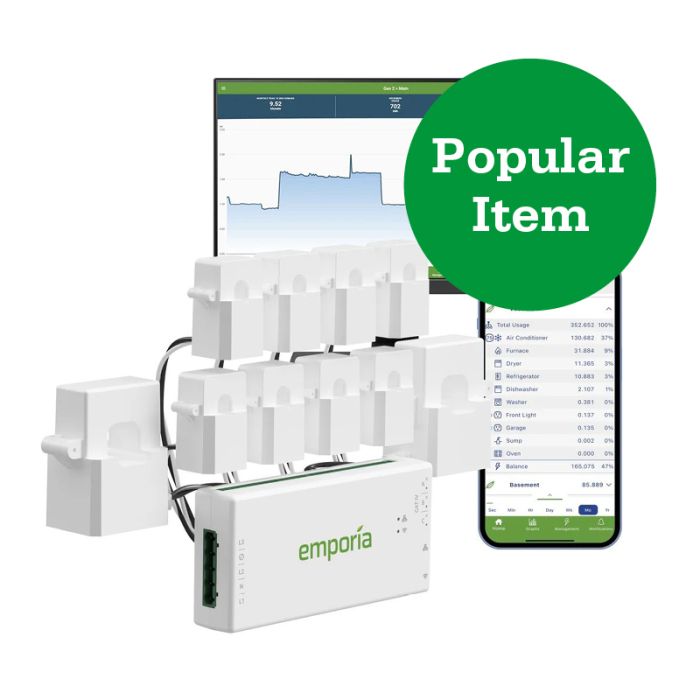

Emporia Vue 3 Home Energy Monitor

Product Features

Real-time Circuit-level Energy Monitoring: Installed directly into the electrical panel, the Vue tracks system voltage and amperage in real-time (24k samples per second), providing immediate energy use insights via the free app. The Vue monitor comes with two main sensors and up to 16 individual circuit sensors.

Save Money: With easy-to-use graphs and real-time reporting, the Vue, combined with the Emporia app, helps identify wasteful energy culprits and optimize energy usage based on utility rate plans.

Notifications: With the user-friendly Emporia app and the Vue system, you can set up notifications to stay informed. Get alerts about appliances that have been left on, pumps that are still running, or when your overall energy use is approaching peak demand or energy thresholds.

Smart home energy management: When integrated with Emporia and third-party smart devices, the Vue helps optimize energy use according to utility rate plans to save up to 20% on monthly bills. In addition to automating time of use scheduling and peak demand load balancing, the Vue also helps make the most of excess solar power.

Product Specs

• Manufacturer model: EMV3A-2P-8
• Maximum voltage sense range: 264VAC L-N per channel
• Voltage Measurement Channels: 3
• Current Measurement Channels: 200A: 3; 50A: 16
• Power usage: under 3 watts
• Wi-Fi: 2.4 GHz IEEE 802.11b/g/n
• Ethernet: 10/100Base-T, IEEE 802.3
• Operating conditions: -40° to 122° F (-40° to 50° C) | 0 to 80% RH Up to 3,000 meters
• Certifications: safety: UL 61010, UL 2808 (E535044); EMC: FCC, ISED, CE, PSE, UKCA
• Measurement Category: 200A CT Ports: Measurement Category IV; 50A CT Ports: Measurement Category III
• CT Wire Length: 1m, easily shortened as necessary
• CT Inside Diameter: 200A CT: 22mm; 50A CT: 10mm
